SoftTissue Anchoring System

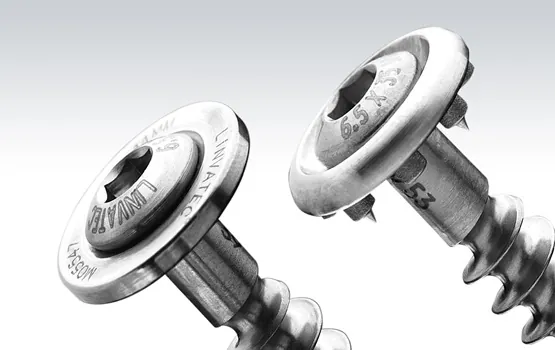

The low-profile screw and washer combination of CONMED’s SoftTissue Anchoring System provides a head having a profile up to 50% lower than competitive versions. Use of a screw and washer set provides continuous strength for soft tissue fixation to bone. Unique washer design on the inferior surface provides excellent fixation of soft tissue to bone.
SPECIFICATIONS
Low Profile Cortical Screw – 4.50 X 30.00mm
| CAT # | C2830 |
| Outer Diameter | 4.50mm |
| Length | 30.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 32.00mm
| CAT # | C2832 |
| Outer Diameter | 4.50mm |
| Length | 32.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 34.00mm
| CAT # | C2834 |
| Outer Diameter | 4.50mm |
| Length | 34.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 36.00mm
| CAT # | C2836 |
| Outer Diameter | 4.50mm |
| Length | 36.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 38.00mm
| CAT # | C2838 |
| Outer Diameter | 4.50mm |
| Length | 38.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 40.00mm
| CAT # | C2840 |
| Outer Diameter | 4.50mm |
| Length | 40.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 42.00mm
| CAT # | C2842 |
| Outer Diameter | 4.50mm |
| Length | 42.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 44.00mm
| CAT # | C2844 |
| Outer Diameter | 4.50mm |
| Length | 44.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 46.00mm
| CAT # | C2846 |
| Outer Diameter | 4.50mm |
| Length | 46.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 48.00mm
| CAT # | C2848 |
| Outer Diameter | 4.50mm |
| Length | 48.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 50.00mm
| CAT # | C2850 |
| Outer Diameter | 4.50mm |
| Length | 50.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 52.00mm
| CAT # | C2852 |
| Outer Diameter | 4.50mm |
| Length | 52.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 54.00mm
| CAT # | C2854 |
| Outer Diameter | 4.50mm |
| Length | 54.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 56.00mm
| CAT # | C2856 |
| Outer Diameter | 4.50mm |
| Length | 56.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 58.00mm
| CAT # | C2858 |
| Outer Diameter | 4.50mm |
| Length | 58.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 60.00mm
| CAT # | C2860 |
| Outer Diameter | 4.50mm |
| Length | 60.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 62.00mm
| CAT # | C2862 |
| Outer Diameter | 4.50mm |
| Length | 62.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 64.00mm
| CAT # | C2864 |
| Outer Diameter | 4.50mm |
| Length | 64.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 66.00mm
| CAT # | C2866 |
| Outer Diameter | 4.50mm |
| Length | 66.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 68.00mm
| CAT # | C2868 |
| Outer Diameter | 4.50mm |
| Length | 68.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 70.00mm
| CAT # | C2870 |
| Outer Diameter | 4.50mm |
| Length | 70.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 72.00mm
| CAT # | C2872 |
| Outer Diameter | 4.50mm |
| Length | 72.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 74.00mm
| CAT # | C2874 |
| Outer Diameter | 4.50mm |
| Length | 74.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 76.00mm
| CAT # | C2876 |
| Outer Diameter | 4.50mm |
| Length | 76.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 78.00mm
| CAT # | C2878 |
| Outer Diameter | 4.50mm |
| Length | 78.00mm |
| Hex | 3.50mm |
Low Profile Cortical Screw – 4.50 X 80.00mm
| CAT # | C2880 |
| Outer Diameter | 4.50mm |
| Length | 80.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 25.00mm
| CAT # | C2610 |
| Outer Diameter | 6.50mm |
| Length | 25.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 30.00mm
| CAT # | C2611 |
| Outer Diameter | 6.50mm |
| Length | 30.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 35.00mm
| CAT # | C2612 |
| Outer Diameter | 6.50mm |
| Length | 35.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 40.00mm
| CAT # | C2613 |
| Outer Diameter | 6.50mm |
| Length | 40.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 45.00mm
| CAT # | C2614 |
| Outer Diameter | 6.50mm |
| Length | 45.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 55.00mm
| CAT # | C2616 |
| Outer Diameter | 6.50mm |
| Length | 55.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 60.00mm
| CAT # | C2617 |
| Outer Diameter | 6.50mm |
| Length | 60.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 50.00mm
| CAT # | C2615 |
| Outer Diameter | 6.50mm |
| Length | 50.00mm |
| Hex | 3.50mm |
Low Profile Cancellous Screw – 6.50 X 65.00mm
| CAT # | C2618 |
| Outer Diameter | 6.50mm |
| Length | 65.00mm |
| Hex | 3.50mm |
Flat Washer – 14.00mm O.D.
| CAT # | 8814S |
| Outer Diameter | 14.00mm |
Flat Washer – 17.00mm O.D.
| CAT # | 8817S |
| Outer Diameter | 17.00mm |
14.00mm Low Profile Spiked Washer, 1.30mm Post
| CAT # | C2620 |
| Diameter | 14.00mm |
| Post Height | 1.30mm |
14.00mm Low Profile Spiked Washer, 2.50mm Post
| CAT # | C2630 |
| Diameter | 14.00mm |
| Post Height | 2.50mm |
17.00mm Low Profile Spiked Washer, 1.30mm Post
| CAT # | C2621 |
| Diameter | 17.00mm |
| Post Height | 1.30mm |
17.00mm Low Profile Spiked Washer, 2.50mm Post
| CAT # | C2631 |
| Diameter | 17.00mm |
| Post Height | 2.50mm |
20.00mm Low Profile Spiked Washer, 1.30mm Post
| CAT # | C2622 |
| Diameter | 20.00mm |
| Post Height | 1.30mm |
20.00mm Low Profile Spiked Washer, 2.50mm Post
| CAT # | C2632 |
| Diameter | 20.00mm |
| Post Height | 2.50mm |
4.50mm Cortical Soft Tissue Bone Tap, Fixed
| CAT # | C2600 |
| Measurement | 4.50mm |
6.50mm Cancellous Soft Tissue Bone Tap, Fixed
| CAT # | C2601 |
| Measurement | 6.50mm |
Depth Gauge
| CAT # | 8579 |
| Measurement Range | 10.00mm to 90.00mm |
Twist Drill, 3.20mm
| CAT # | 8604 |
| Measurement | 3.20mm |
Twist Drill, 4.50mm
| CAT # | 8605 |
| Measurement | 4.50mm |
