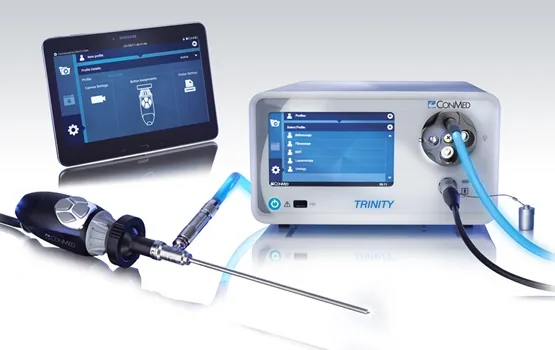

Trinity™ All-in-One Integrated HD Camera System

Now get the 4K image you want in the easy-to-use, all-in-one format you need. The Trinity™ 4K System provides ultra-high-definition 4K resolution while the camera controller, light source and image capture come in an All-In-One compact console.


Trinity 4K – Better Outcomes Start with Better Visualization

  • The 3-chip CMOS sensors deliver an increased color spectrum, clarity and resolution while the direct LED light source delivers consistent light output for optimal clarity.
  • The video output provides over 8 million viewing pixels while CONMED’s new 4K UHD monitor provides over 1 billion colors for an ultra-high-definition image with  exceptional clarity and color to provide an accurate view of anatomical structures, bone and soft tissue characteristics.

Easy-to-Use, All-in-One Interface

  • The Trinity 4K combines the camera controller, light source and image capture into one compact console that frees up space and simplifies wire management. The easy-to-use touch-screen features familiar icons for low-learning curve operation while customizable profiles allow users to save and quickly access preferred settings for different procedures.
  • An optional wireless tablet allows OR staff access to the system remotely, so adjustments can easily be made from outside the sterile field.

Rugged Autoclavable Design

  • To increase reprocessing efficiency, the autoclavable camera heads are approved for automated wash cycles, enabling sterilization in the same tray at the same time
    as other procedural accessories.
  • Known for durability, CONMED’s camera head features a shock resistant housing, designed to meet the most demanding room turnover.








Camera Controller
Trinity™ HD Camera Control Unit
CAT # 81-10-2010
Presets Easily configure for multiple-users and specialties
Video Outputs 2x DVI-D (1080p; 60 Hz), 2x 3G HD-SDI (1080p; 60 Hz)
Input USB 2.0: Front: x1. Rear: x3
Data I O Ethernet: RJ45 x 2
Wireless Connectivity 802.11n WiFi
Remote I O Remote outputs for still and motion capture Input for Foot Pedal
Touchpanel 7” capacitive touch
Still Capture 1080p – JPEG
Motion Video Capture H.264 Encoding, Variable bit rates
Hard Drive Capacity 256GB solid state drive
Dual Channel Record 2 video signals simultaneously
Printing Print to Sony UPDR80MD Printer
Overall Dimensions Approximate 150mm (H) x 300mm (W) x 370mm (D)
Light Source Integrated 30,000 hour LED
Trinity™ 4K Camera Control Unit
CAT # 81-10-4010
Presets Easily configure for multiple-users and specialties
Video Outputs Display Port (x2) 3840x2160p; 60Hz, DVI-D (X1) 1920X1080p; 60Hz
Camera Head
Trinity™ HD Camera Head, 3CMOS “Eyecup”
CAT # 81-10-2100
Image Sensor 3 CMOS sensors
Coupler Integrated eyepiece grabber coupler
Buttons Four programmable buttons
Electronic Zoom 2x digital zoom
Sterilization Autoclave or Sterrad
Camera Cable 5mm x 10 feet
Trinity™ 4K Camera Head, 3CMOS “Eyecup”
CAT # 81-10-4100
Tablet User Interface
CAT # 81-10-1000
Dimensions 10” tablet
Functions Image Capture and Device Management
Connectivity Wireless or wired connection to CCU
Operating System Android
